SS Auto SS9KACX
Original price was: $2,930.00.$2,500.00Current price is: $2,500.00.
- Standard Features:
- High-Quality Construction
- Chain Drive
- Dual Point Lock Release

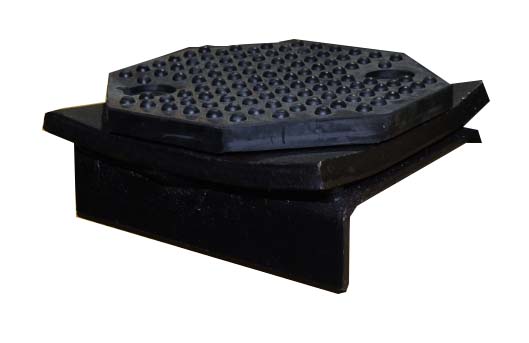

- Saddle Pad Adapters included(1pair)
- Powder coat finish
New TP9K“X” Features
- Single Piece Column construction (SS-TP9KACX)
- Padded ‘Shut Off’ Bar w/ Kill Switch (SS-TP9KACX )
- Low Profile ‘drop-in’ Swivel Pads w/ 1-1/2” adjustable height

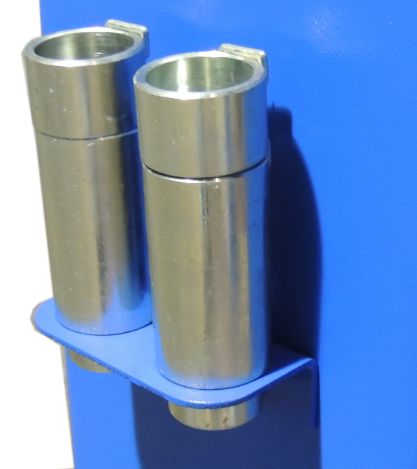

- 4ea Stackable 1-3/8”&4” ‘drop-in’ Height Adapters

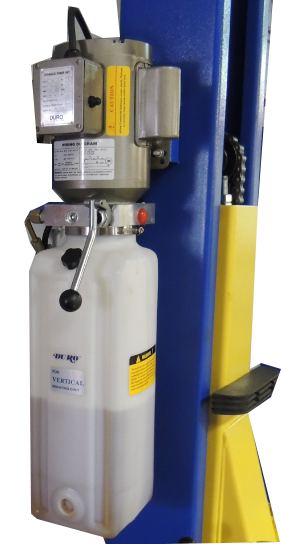

- Reduced overall Width w/ front-side Power Unit Mounting

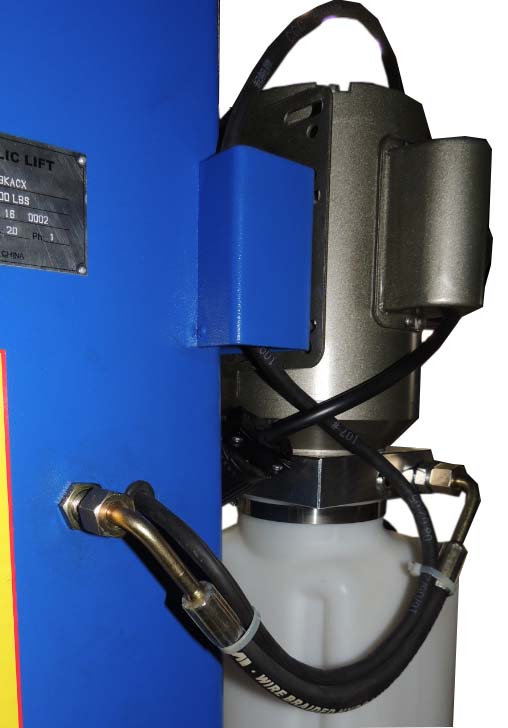

- Internal Hose Routing w/ integrated Hose Guards

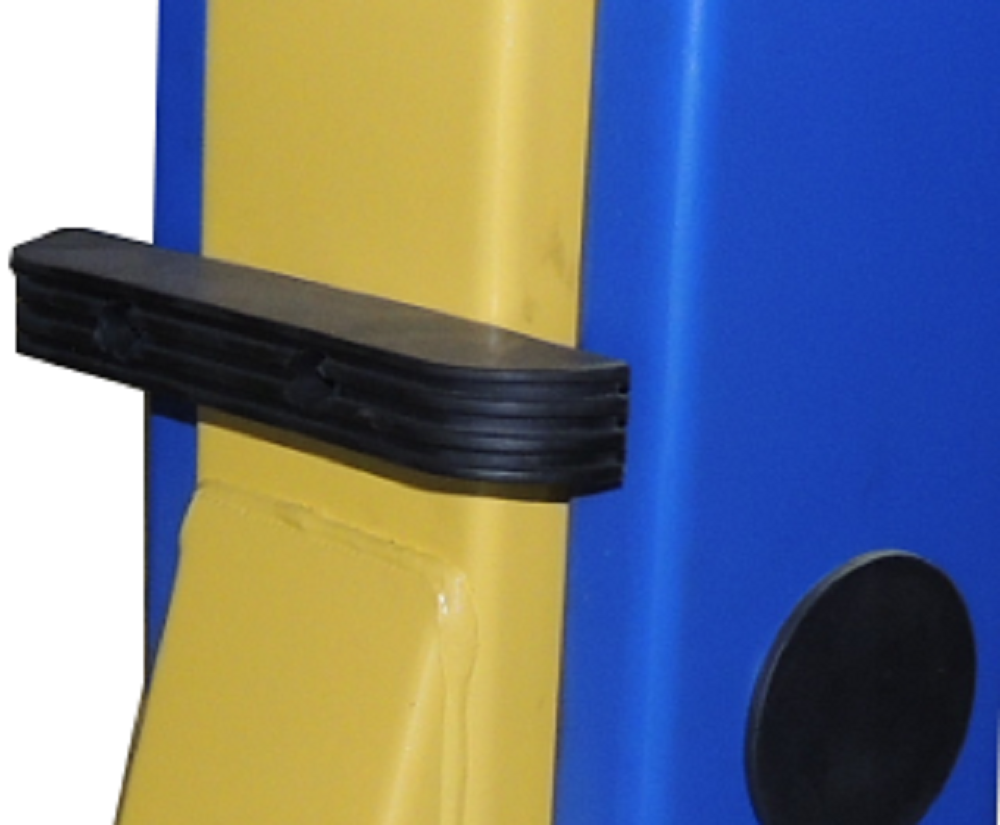

- Rubber Door Guards
Did you like this product? Add to favorites now and follow the product.
Description

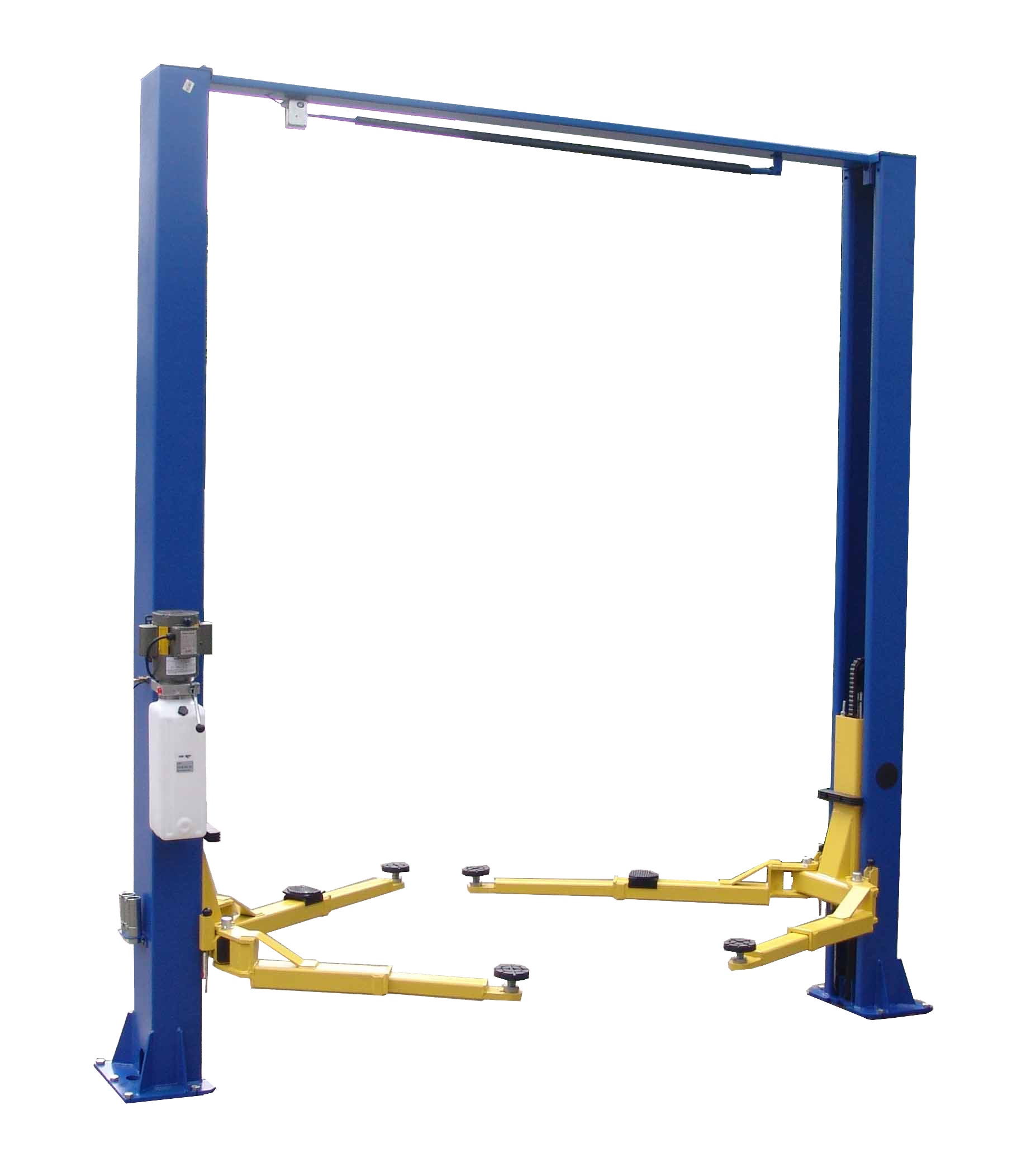

Introducing the New SS9K ‘X’ Series Two Post Lifts!! The new SS9KACX & 9KFX Two Post, Clear Floor & Floor Plate Lifts have been redesigned to now include standard features with Single Piece Column construction, Internal Hose routing, Padded Overhead Shut-Off Bar with Kill Switch, Reduced overall Width, Drop-In Adjustable Swivel Pads with Height Adapters & Rubber Door Guards, making these models one of the best Two Post Lift values in the industry!
Additional information
| Lift Model | TP9KACX |
|---|---|
| Capacity | 9,000 lbs. |
| Height Overall | 142-7/8" |
| Width Overall w/ Power Unit | 138" |
| Max Lift Height | 72" |
| Width Between Columns | 113-5/8" |
| Min. Pad Height | 4" |
| Drive Thru Clearance | 96" |
| Lifting Speed | 50S |
| Asymmetric / Symmetric | Asymmetric |
| Clear Floor / Floor Plate | Clear Floor |
| Short Arm Reach - min/max | 29"-41" |
| Long Arm Reach - min/max | 37"-57" |
| Narrow Bay Setting | ΝΑ |
| Max Load Per Arm | 2,250 lbs. |
| Ship Weight | 1,370 lbs. |
| Power | 220V – 20 AMP – 1PH |
