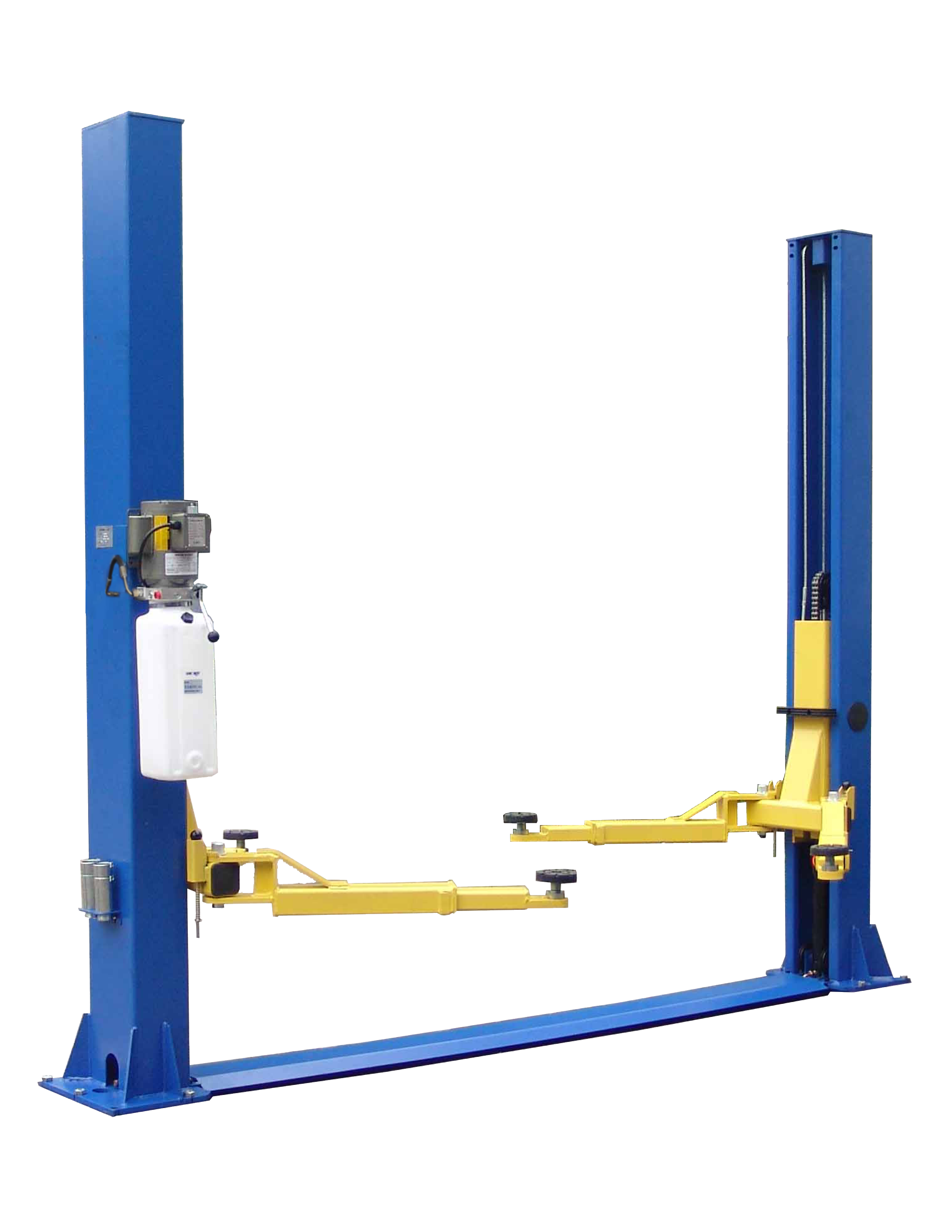

SS Auto SS9KFX
$2,790.00
Standard Features:
- High-Quality Construction
- Chain Drive
- Dual Point Lock Release

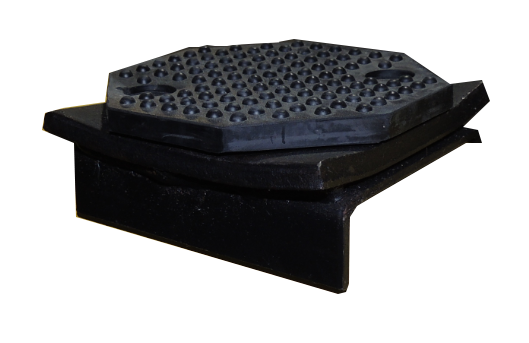

- Saddle Pad Adapters included(1pair)
- Powder coat finish
New TP9K“X” Features
- Single Piece Column construction (TP9KACX – TP9KSCX)
- Padded ‘Shut Off’ Bar w/ Kill Switch (TP9KACX – TP9KSCX)

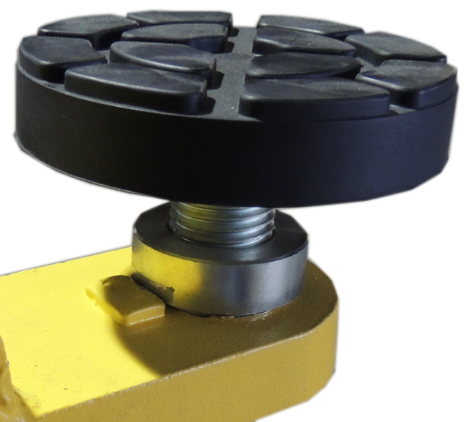

- Low Profile ‘drop-in’ Swivel Pads w/ 1-1/2” adjustable height

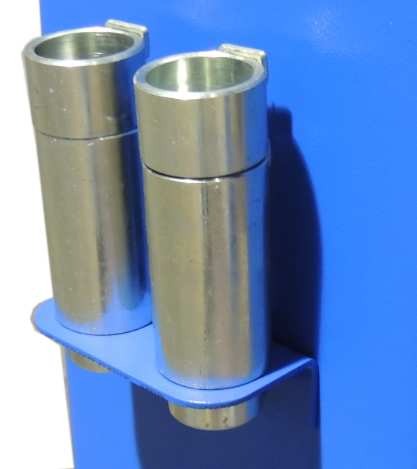

- 4ea Stackable 1-3/8”&4” ‘dropin’ Height Adapters

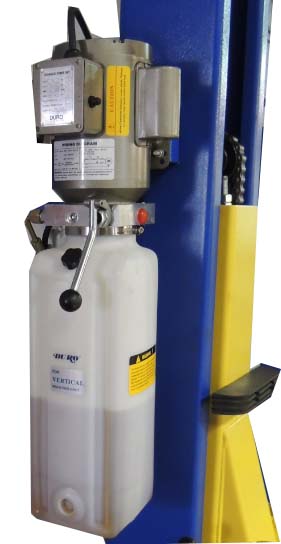

- Reduced overall Width w/ front-side Power Unit Mounting

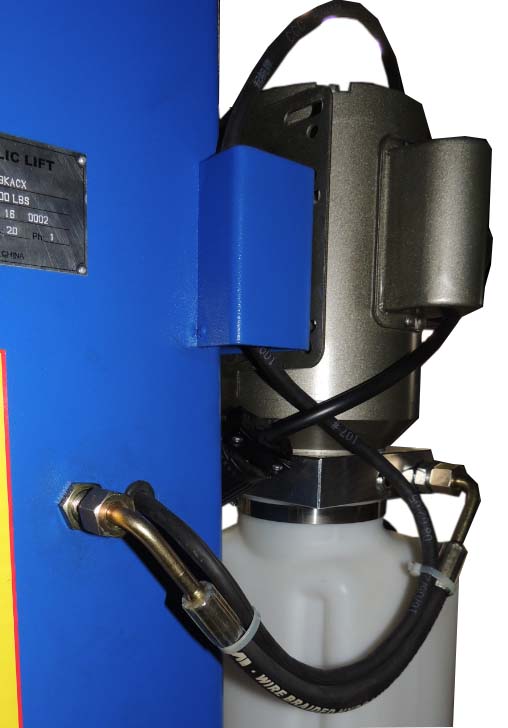

- Internal Hose Routing w/ integrated Hose Guards

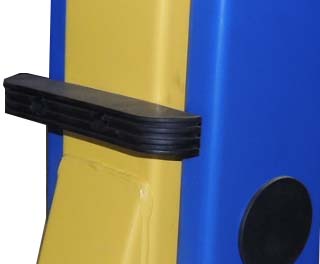

- Rubber Door Guards
Did you like this product? Add to favorites now and follow the product.
Description
Introducing the New SS9K ‘X’ Series Two Post Lifts!! The new SS9KACX & SS9KFX Two Post, Clear Floor & Floor Plate Lifts have been redesigned to now include standard features with Single Piece Column construction, Internal Hose routing, Padded Overhead Shut-Off Bar with Kill Switch, Reduced overall Width, Drop-In Adjustable Swivel Pads with Height Adapters & Rubber Door Guards, making these models one of the best Two Post Lift values in the industry!
Additional information

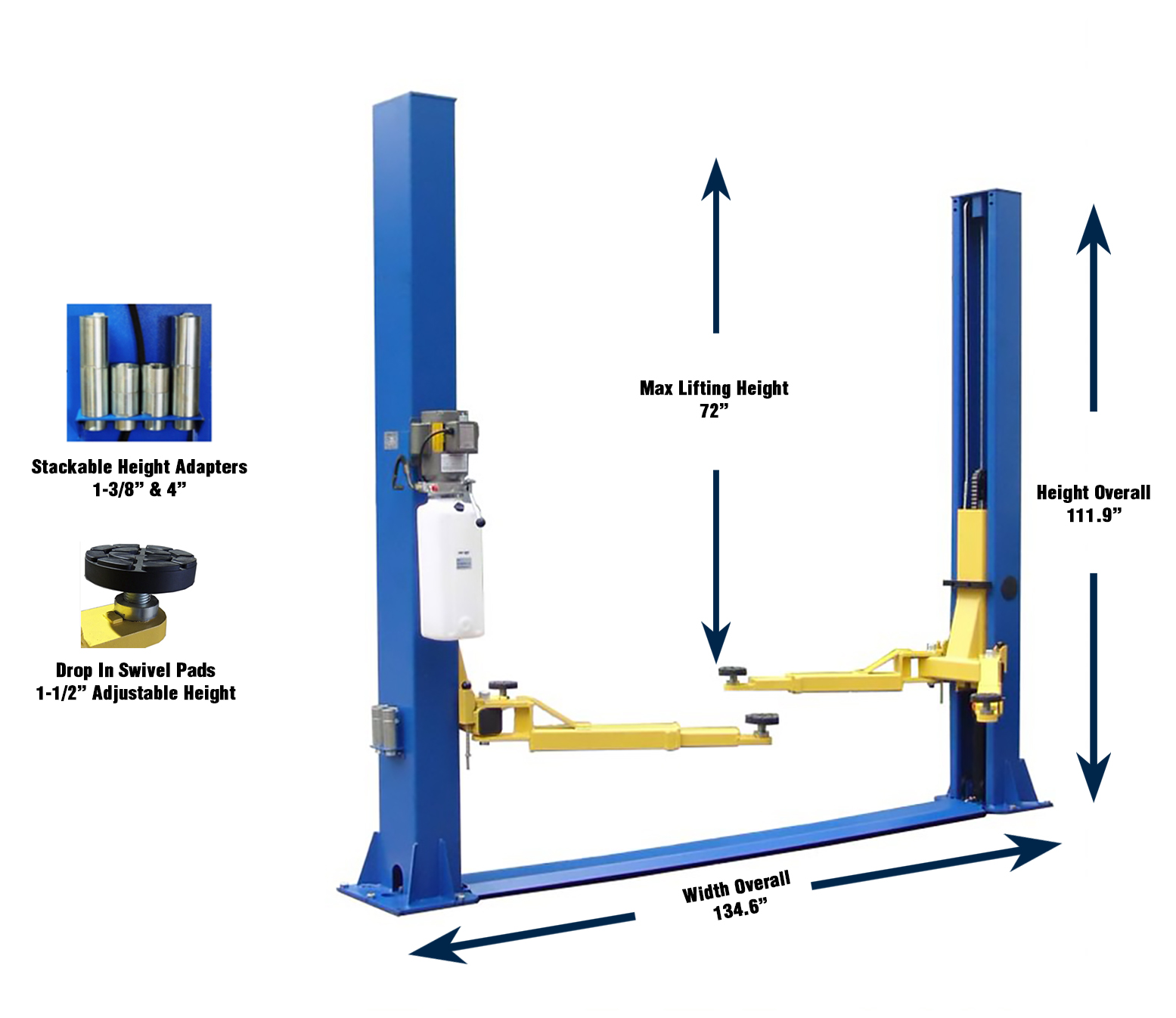

| Lift Model | TP9KFX |
|---|---|
| Capacity | 9,000 lbs. |
| Height Overall | 111-7/8" |
| Width Overall w/ Power Unit | 134-5/8" |
| Max Lift Height | 72" |
| Width Between Columns | 110-3/8" |
| Min. Pad Height | 4" |
| Drive Thru Clearance | 101" |
| Lifting Speed | 50S |
| Asymmetric / Symmetric | Symmetric |
| Clear Floor / Floor Plate | Floor Plate |
| Short Arm Reach - min/max | 31"-45" |
| Long Arm Reach - min/max | Same |
| Narrow Bay Setting | ΝΑ |
| Max Load Per Arm | 2,250 lbs. |
| Ship Weight | 1,270 lbs. |
| Power | 220V – 20 AMP – 1PH |
