AMGO OHX-10H
Original price was: $5,350.00.$4,365.00Current price is: $4,365.00.
Features:
- 10,000 lbs capacity.
- Dual hydraulic cylinders, designed and made on high standard, high quality seals.
- Super Asymmetric arms allow to load different vehicles in an asymmetric or symmetric configuration.
- 3/8″ aircraft quality cable is used for synchronization.
- Self-lubricating UHMW Polyethylene sliders and bronze bush.
- Single-point safety release, and dual safety design.
- Clearfloor design, provides unobstructed floor space.
- Overhead safety stop device.
- Automatic arm restraints keep the arms locked in their proper positions.
- Adjustable heights for OHX-10H.
- Stackable adapters 1.5″, 2.5″, 5″ as standard.
- Detachable foot guard and tool tray.
Did you like this product? Add to favorites now and follow the product.
Description

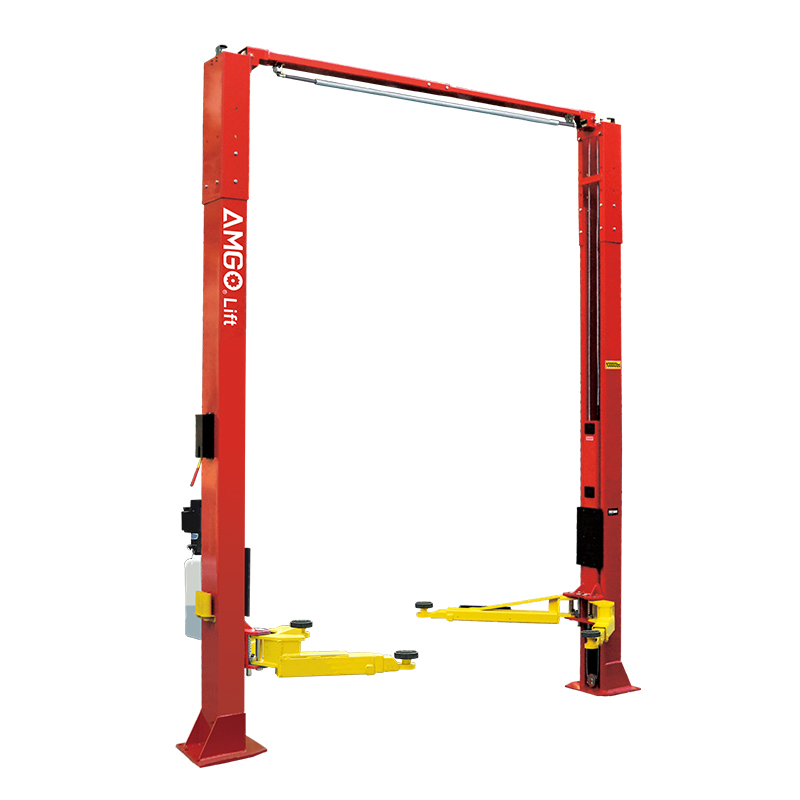

TWO-POST SUPER ASYMMETRIC LIFT
The professional lifts model OHX Series are designed with asymmetric arms but also can be configured with symmetric, Height & Width adjustment, fitting for low ceiling height (model OHX-10) and high ceiling but with extremely high (model OHX-10H).
Additional information
| Model | OHX-10H |
|---|---|
| Lifting Capacity | 10,000lbs (4500kg) |
| Lifting Time | 63s |
| Lifting Height | 78 3/4" ~ 80 5/8" (1815~2044mm) |
| Overall Height | 157″~167-3/16″ (3988~4267mm) |
| Overall Width | 134-15/16"- 140 7/8" (width extension kit req'd) |
| Drive-Thru Clearance | 99 13/16"- 105 11/16" (width extension kit req'd) |
| Width Between Columns | 112 19/32" – 118 1/2" (width extension kit req'd) |
| Minimum Pad Height | 3 3/4"(90mm) |
| Motor | 2.0HP,220V/60Hz, single phase |
| Gross Weight | 1,739lbs (735kg) |
