OHX-10
$3,350.00
Features:
- 10,000 lbs capacity.
- Dual hydraulic cylinders, designed and made on high standard, high quality seals.
- Super Asymmetric arms allow to load different vehicles in an asymmetric or symmetric configuration.
- 3/8″ aircraft quality cable is used for synchronization.
- Self-lubricating UHMW Polyethylene sliders and bronze bush.
- Single-point safety release, and dual safety design.
- Clearfloor design, provides unobstructed floor space.
- Overhead safety stop device.
- Automatic arm restraints keep the arms locked in their proper positions.
- Adjustable heights for OHX-10H.
- Stackable adapters 1.5″, 2.5″, 5″ as standard.
- Detachable foot guard and tool tray.
Did you like this product? Add to favorites now and follow the product.
(330) 870-2558 Call Us
Description

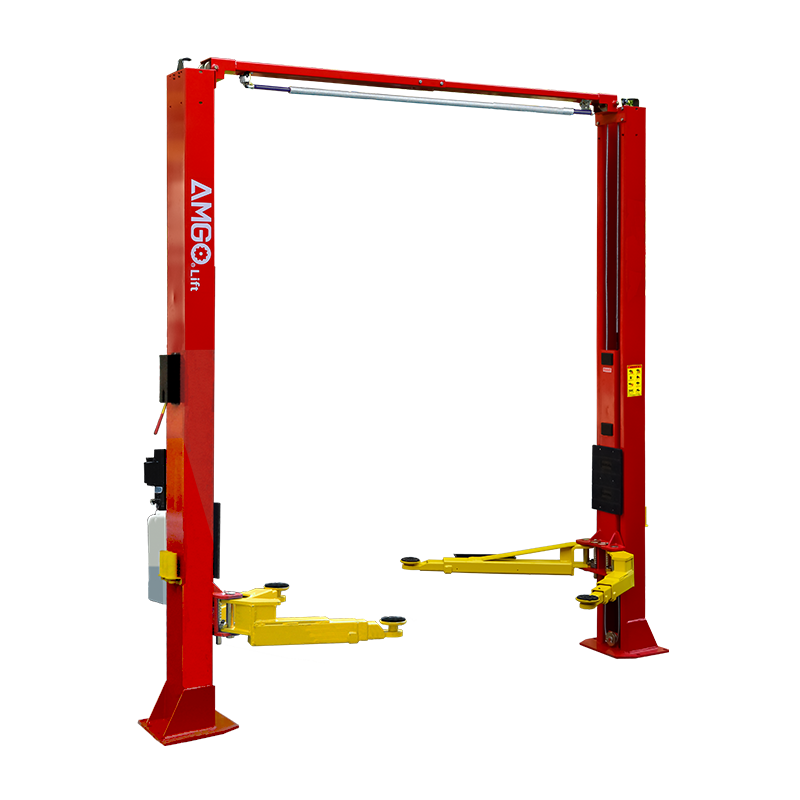

TWO-POST SUPER ASYMMETRIC LIFT
The professional lifts model OHX Series are designed with asymmetric arms but also can be configured with symmetric, Height & Width adjustment, fitting for low ceiling height (model OHX-10) and high ceiling but with extremely high (model OHX-10H).
Additional information
| Model | OHX-10 |
|---|---|
| Lifting Capacity | 10,000lbs (4500kg) |
| Lifting Time | 57S |
| Lifting Height | 71 1/2" ~ 80 1/2" (1815~2044mm) |
| Overall Height | 144" (3658mm) |
| Overall Width | 135"/140 7/8" (3428/3578mm) |
| Drive-Thru Clearance | 99 1/2"/1051/2" (2528/2678mm) |
| Width Between Columns | 112 1/4"/118 1/8" (2850/3000mm) |
| Minimum Pad Height | 3 1/2"(90mm) |
| Motor | 2.0HP,220V/60Hz, single phase |
| Gross Weight | 1,620lbs (735kg) |
