Atlas BP8000
$2,949.00
Features:
- 8,000 lb. Capacity
- Hobbyist Grade Lift – Not intended for heavy commercial use
- Baseplate, Open-Top Style Lift

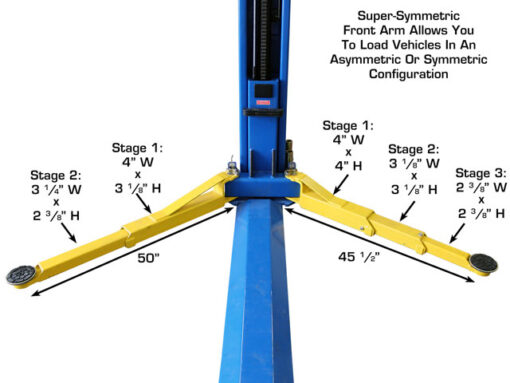

- 3-Stage front arms/2-Stage rear arms

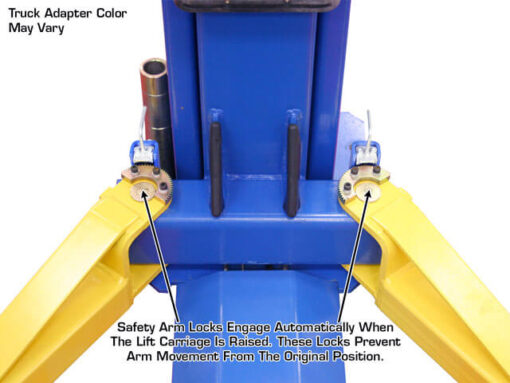

- Automatic Arm Restraints

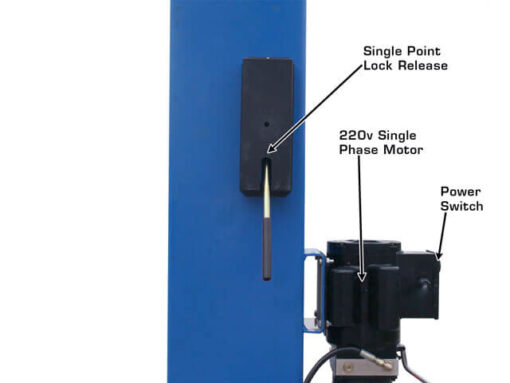

- Single-Point Lock Release
- Double Safety Lock System

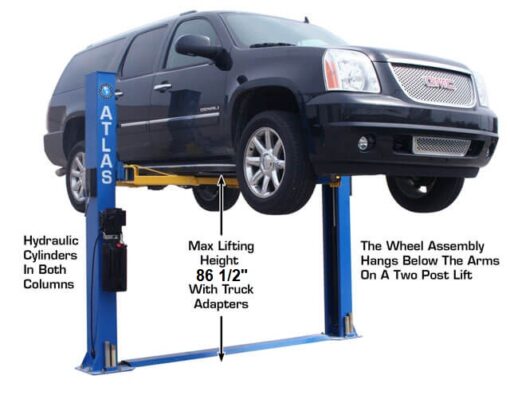

- Dual Hydraulic Chain-Drive Cylinders
- Free 12 Piece Truck Adapter Set
- Mounting Hardware Included

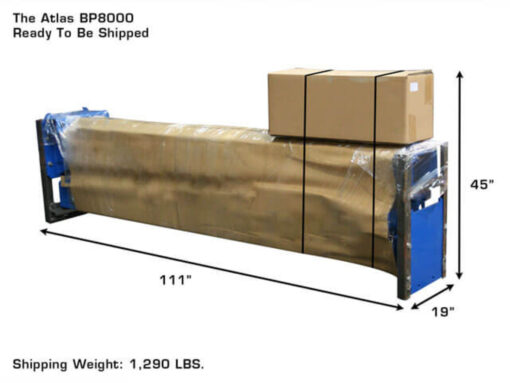

- Shipping Weight: 1,300 lbs.
- 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only
Did you like this product? Add to favorites now and follow the product.
Description

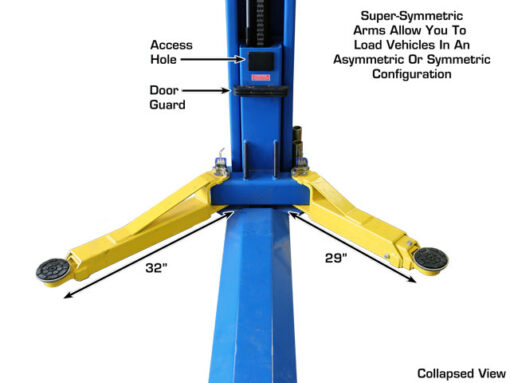

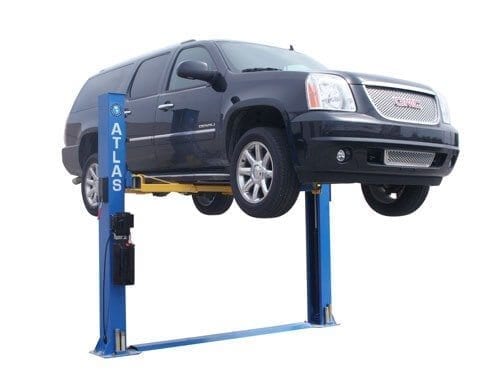

The Atlas® BP8000 is a baseplate two-post lift designed for low ceiling garages. The total column height of 108 inches or 9 feet allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9 foot 3 inches. The BP8000 also has many of the popular features found on larger more expensive lifts, including a single-point lock release, Super-symmetric arms, and a twelve piece truck adapter set.
Additional information
| Model | BP8000 |
|---|---|
| Capacity | 8,000 LB. |

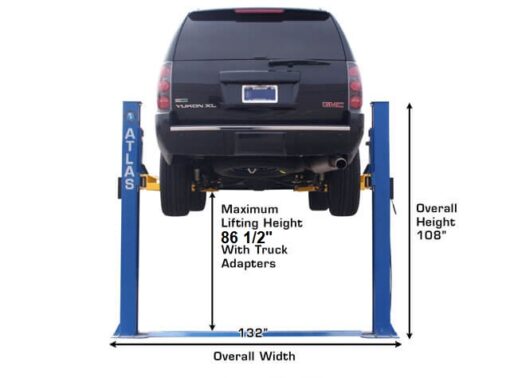

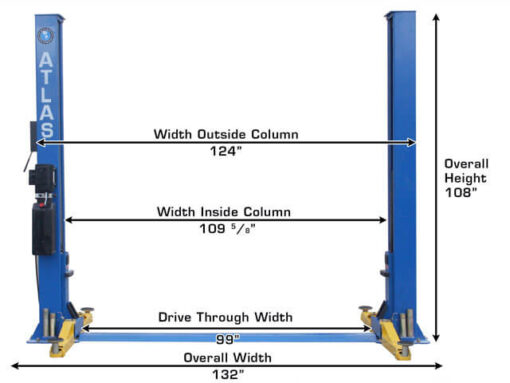

| Overall Height | 108" (9’) |
| Overall Floor Width | 132" (11’) |
| Outside Column to Outside Column | 124" (10’ 4") |

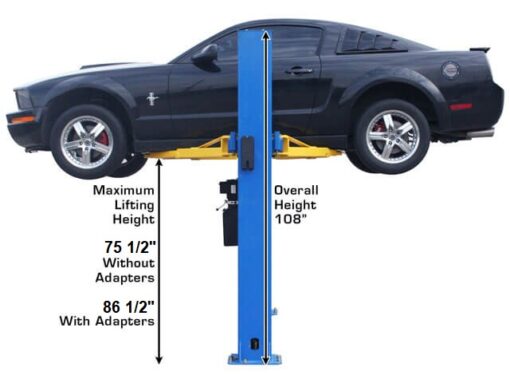

| Maximum Lift Height (Without Adapters) | 75 1/2" |
| Maximum Lift Height (With Adapters) | 86 1/2" |
| Minimum Arm Height | 4" |
| Inside Column | 109 1/8” (9’ 1 1/8”) |
| Drive Thru | 99” (8’ 3”) |
| Column Size | 7 1/4" x 11" |
| Column Thickness of Steel | 6mm |
| Base Of Lift | 17 1/2" x 17 3/4" |

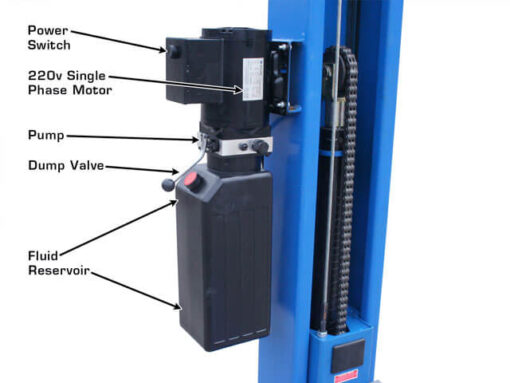

| Motor/Electrical Requirement | 220 volt single (1) phase. |
| Oil Requirement | 3-5 Gallons AW32/AW46 (NOT INCLUDED) |
| Shipping Weight | 1,300 LBS. |

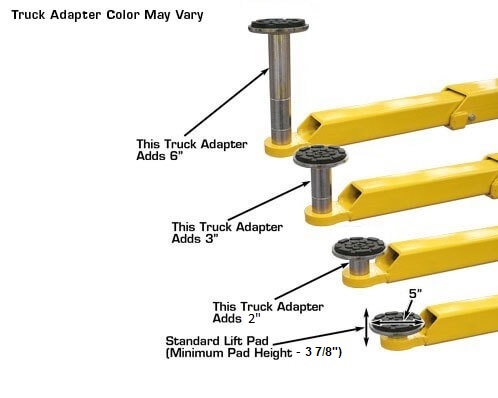

| Adapter Heights | 4 Each 2”, 3”, 6” |
| Arm Hole/Adapter Peg Size | 1.5” |
