Atlas BP10000X
$4,449.00
Features:
- 10,000 lb. Capacity
- Commercial Grade
- Baseplate, Open-Top Style Lift
- Overall Height: 111 7/8″ (9′ 3 7/8″)

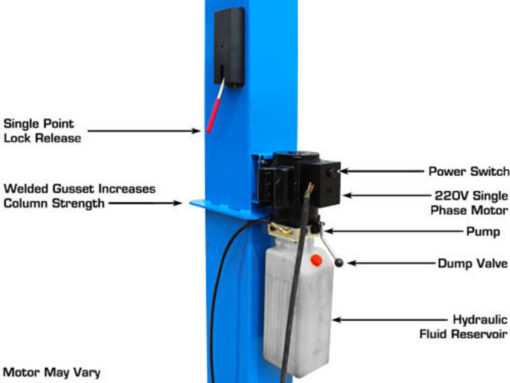

- Single-Point Lock Release Allows Both Columns To Be Disengaged Simultaneously

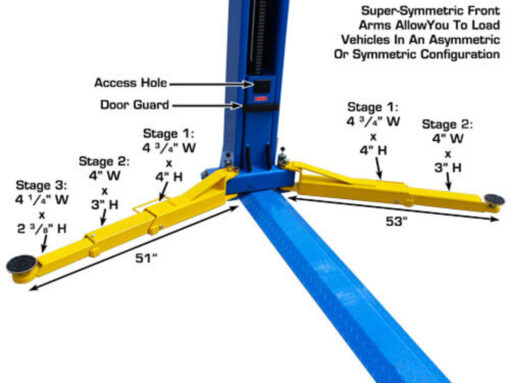

- Super-Symmetric Arms

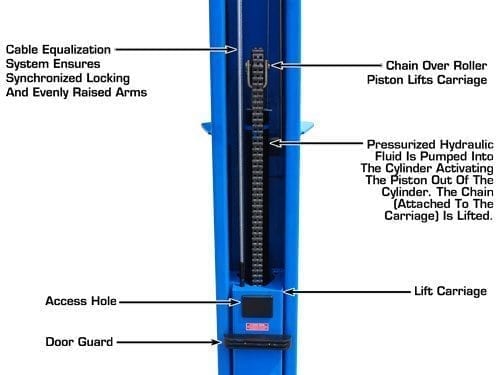

- Dual Hydraulic Chain-Drive Cylinders Made to ANSI Standard
- Welded Support Gussets Increase Column Strength.
- Automatic Arm Restraints
- Powder Coat Finish

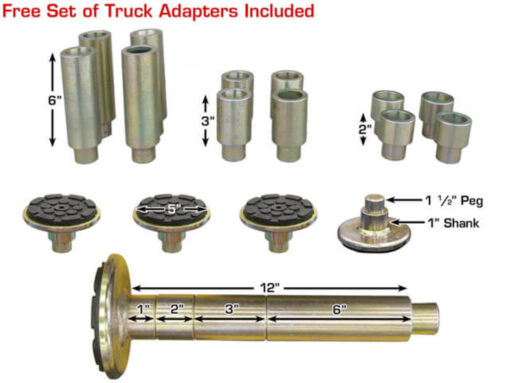

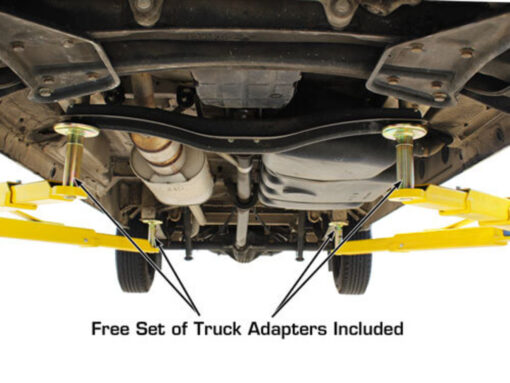

- Free 12 Piece Truck Adapter Set

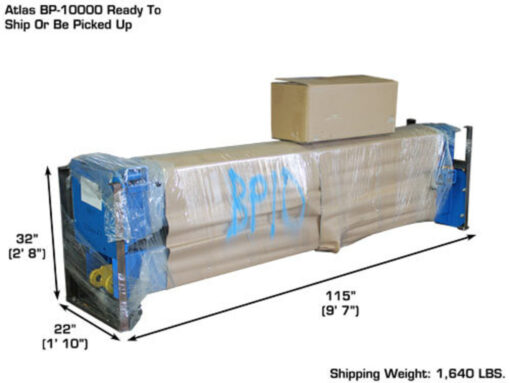

- Shipping Weight: 1,640 LBS.
- 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only
Did you like this product? Add to favorites now and follow the product.
Description

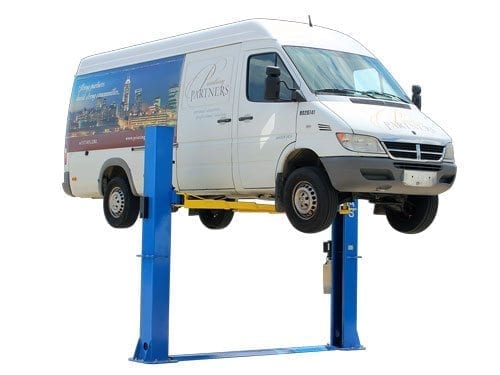

The Atlas® BP10000X commercial grade 2 post baseplate lift is built for those customers who want to lift heavy vehicles in a low ceiling garage. The Atlas® BP10000X incorporates the popular single point lock release columns have a middle welded support gusset that adds extra strength to the oversized columns. If you need to lift a one ton dually or a Smart Car and only have an 11 foot ceiling, this is the lift for your shop.
Additional information
| Model | BP10000X |
|---|---|
| Capacity | 10,000 LB. |

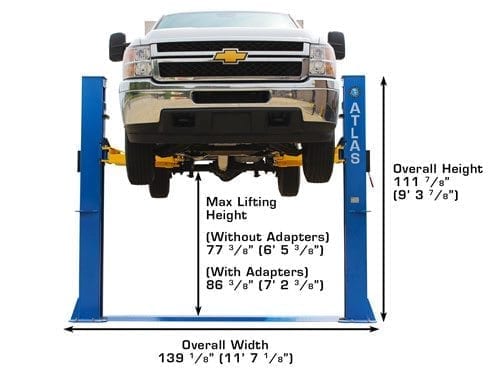

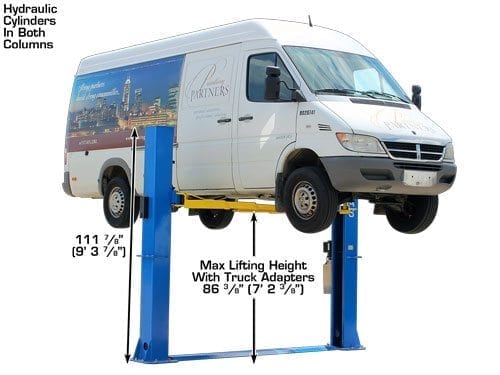

| Overall Height | 111 7/8" (9’ 3 7/8") |

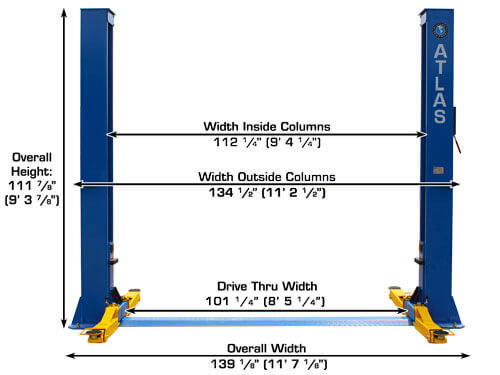

| Overall Floor Width | 139 1/8" (11’ 7 1/8") |
| Outside Column to Outside Column | 134 1/2" (11’ 2 1/2") |
| Maximum Lift Height (Without Adapters) | 77 3/8" |
| Maximum Lift Height (With Adapters) | 86 3/8" |
| Minimum Arm Height | 4" |

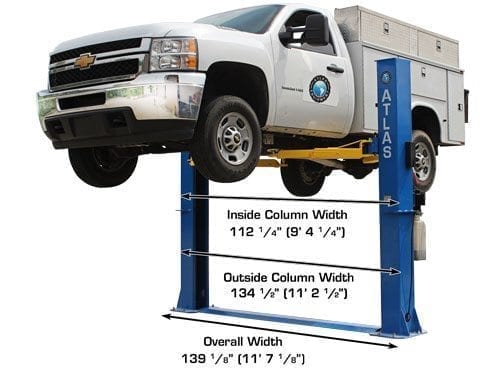

| Inside Column | 112 1/4” (9’ 4 1/4”) |
| Drive Thru | 101 1/4” (8’ 5 1/4”) |
| Column Size | 9 1/2" x 11" |
| Column Thickness of Steel | 6mm |
| Base Of Lift | 17 1/2" x 21 1/2" |
| Motor/Electrical Requirement | 220 volt single (1) phase. |
| Oil Requirement | 3-5 Gallons AW32/AW46 (NOT INCLUDED) |
| Shipping Weight | 1,640 LBS. |

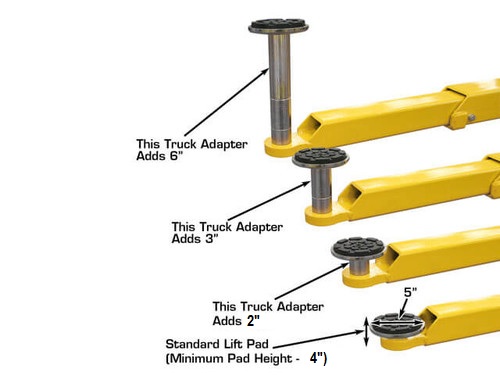

| Adapter Heights | 4 Each 2”, 3”, 6” |
| Arm Hole/Adapter Peg Size | 1.5” |
