Air Force AF6 Compressor
$2,299.00
Features:
- 2-Stage Pump
- 5hp, Low RPM Motor
- 80 Gallon Vertical Tank (Made in the USA)
- Air Output 140-175 PSI
- Extremely Quiet Operation

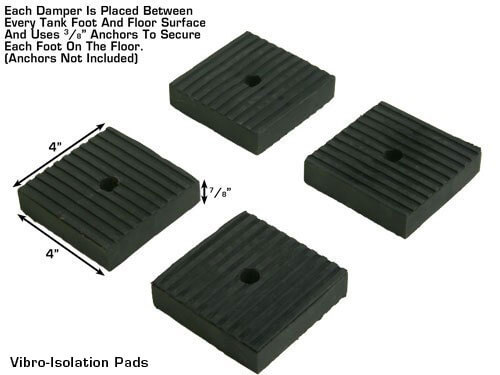

- Set of Vibro-Isolation Pads Included

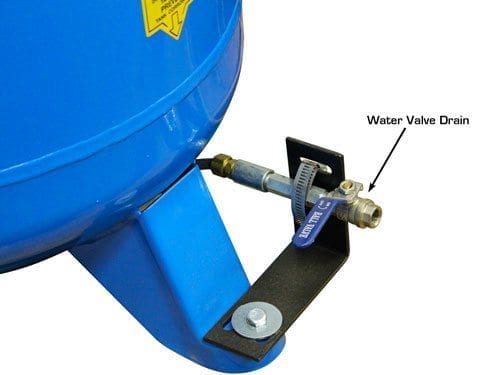

- Hands free tank drain extension
- Compressor oil drain extension tube
- Finned tank inlet tube for reduced tank water accumulation

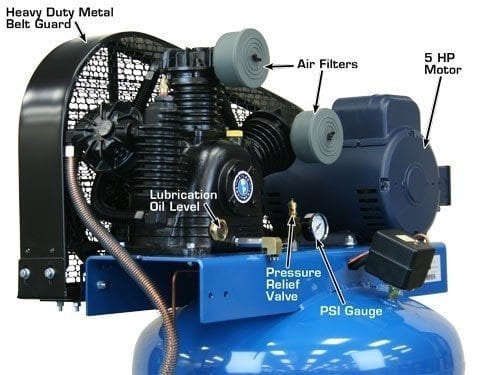

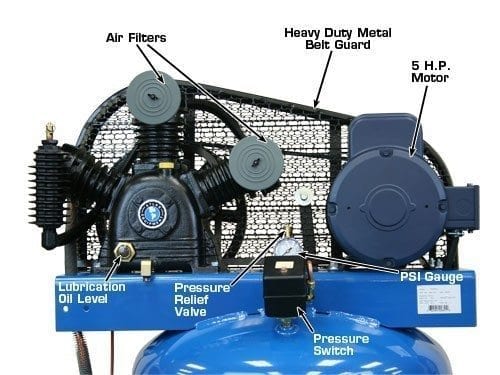

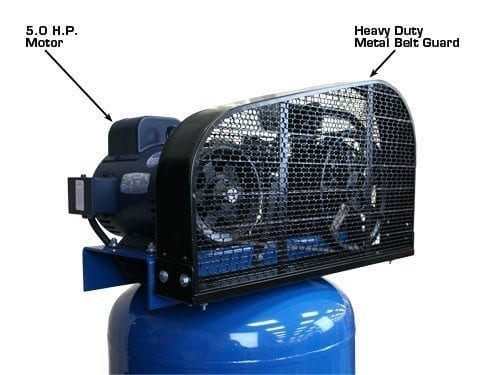

- Heavy Duty Metal Belt Guard
- Electric: 220volt/1phase, 50 Amp Breaker Required
- 1 Year Parts Only Warranty
Did you like this product? Add to favorites now and follow the product.
Description
The Atlas® Air Force AF6 is a entry level commercial grade two (2) stage vertical air compressor. This unit operates between 145 and 175 PSI and will run our Atlas® line of sandblast cabinets (when using Medium or Medium-Fine glass bead). The combination of the commercial grade low RPM motor and the heavy duty 3 cylinder (2 cylinders are low pressure and 1 cylinder is high pressure) cast iron reciprocating air compressor pump delivers an incredible amount of air volume and air pressure for a very low price.
The Atlas® Air Force air compressors are powerful, belt driven reciprocating air compressors designed and built to offer years of trouble-free service. The Atlas® Air Force shop compressors are built to the same exacting standards as the entire line of Atlas® professional grade automotive equipment
Additional information
| Model | Air Force AF6 |
|---|---|
| Motor Running | 5.0 Horsepower |
| Delivered-CFM 100PSI | 15.0 |
| Delivered-CFM 175PSI | 14.0 |
| Pressure Setting | 145-175 PSI |
| Tank Capacity | 80 Gallons |
| Air Outlet Size | 1/2" NPT |

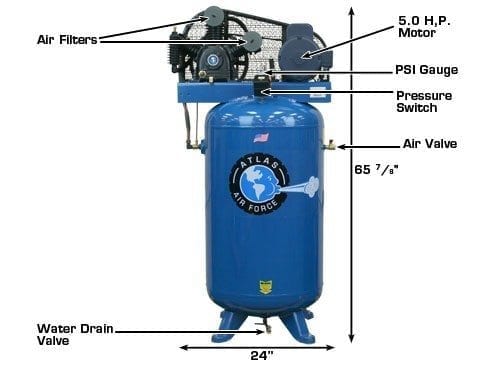

| Overall Dimensions | L 24 1/2" x W 24" x H 65 7/8" |
| Motor Voltage | 220volt, 1PH, 50 amp breaker required |
| Compressor Pump | CT40 3 Cylinder, 2-Stage |
| Shipping Weight | 485 LBS. |
